V2 RTK Base Station with High Accuracy

Low-cost, self-erecting, high-precision RTK base stations.

APP Equipped | Multi-constellation Support | 15-25km Range.

Low-cost, self-erecting, high-precision RTK base stations.

Lifetime access to RTK signal for unparalleled accuracy down to the centimeter over 15-25km.

Was €3500

Sale Price €3395 +Vat

Save €105

Highlights

Obtains Lifetime Access to RTK Signal
15-25 Kilometers Range
Achieves Centimeter-level Accuracy
Works with Auto Steer System
Supports Smart APP Control
10H Long Battery Life (Rechargeable)
Free 1-year Warranty
Free Software Upgrades for Life

Description

Introducing the latest evolution of our RTK base station technology: The V2 RTK Base Station. Building upon the success of its predecessor, the V2 offers an extended range of 15-25km, providing even greater coverage for your precision farming needs. Like its predecessor, the V2 RTK Base Station is equipped with a user-friendly app and multi-constellation support, ensuring optimal performance in diverse field conditions.

Seamlessly integrate the V2 RTK Base Station with your Auto Steer System and enjoy smart control via our intuitive app. With its rechargeable battery boasting up to 10 hours of continuous operation, you can trust in reliable performance season after season. Backed by a free 1-year warranty, the V2 RTK Base Station is the ultimate solution for precision agriculture.

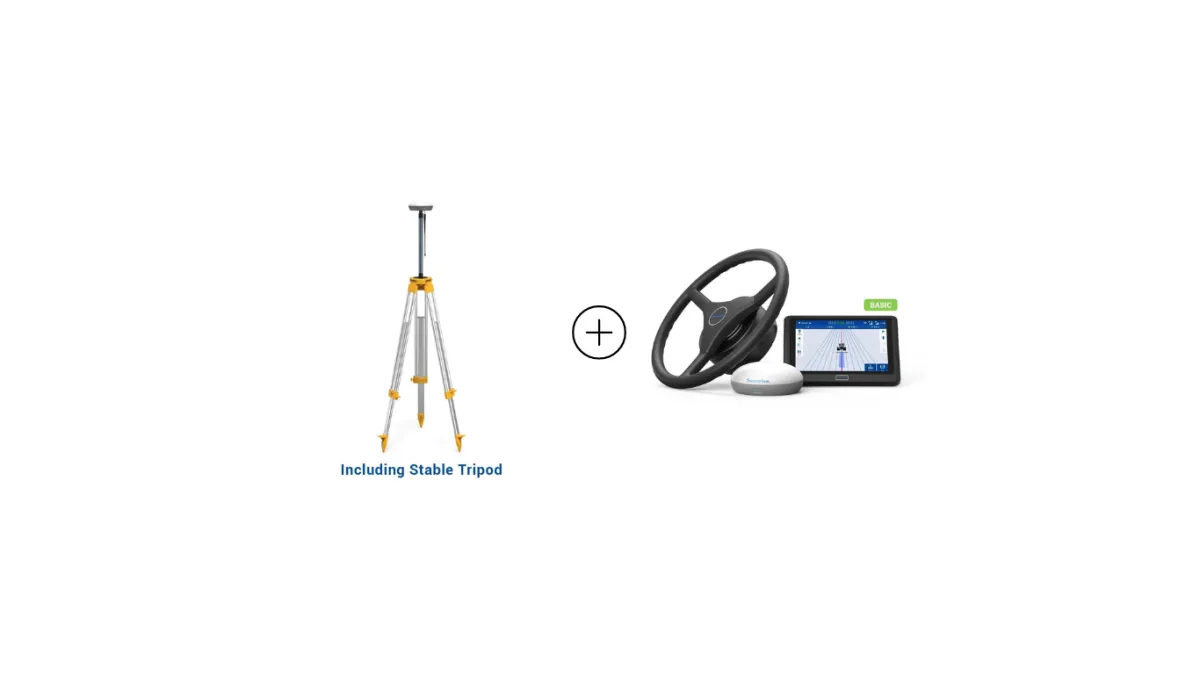

Package Discount

This item: V1 RTK Base Station with High Accuracy

F100 Tractor Auto Steer System

Total price: €7.898,00 €6.599,00

Affordable RTK Signals with Centimeter Accuracy

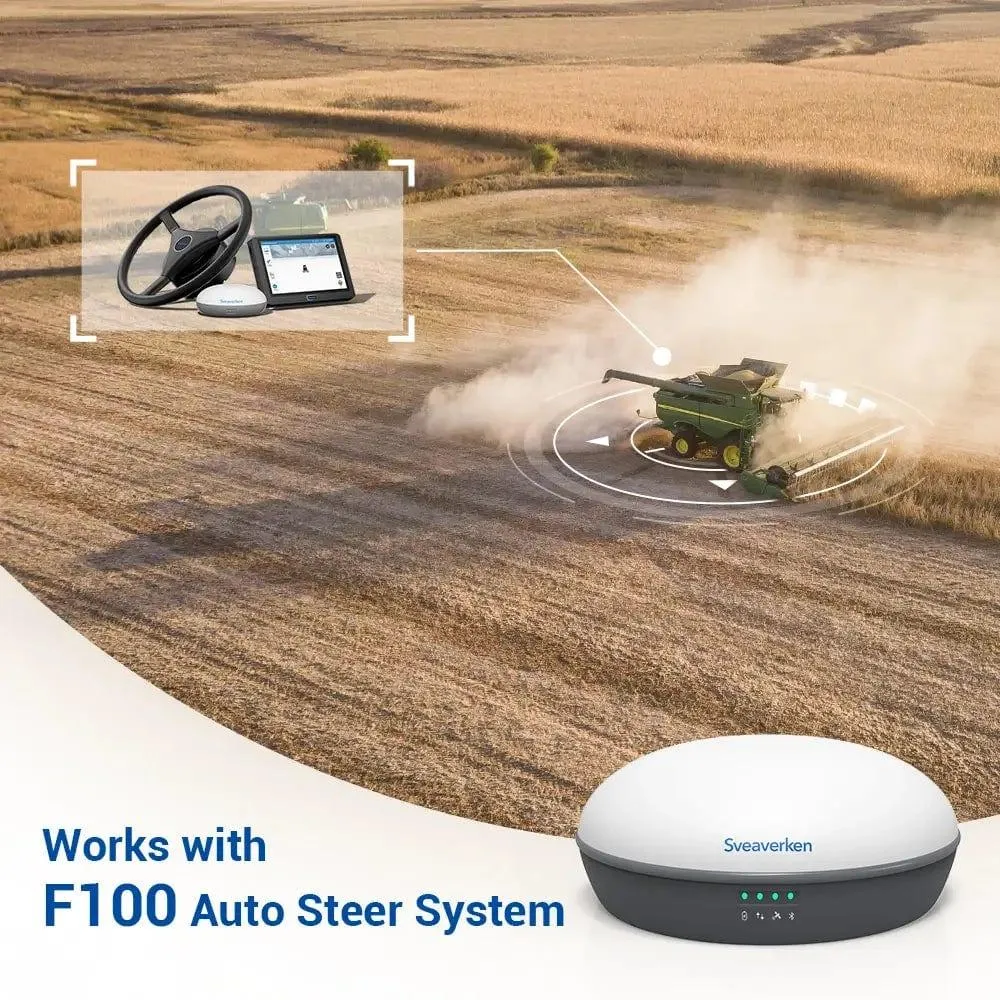

Sveaverken V1 RTK Base Station working with F100 Auto Steer System can provide centimeter-level positioning service. In the field of precision agriculture, it enables more stable correction signals for farmers' user terminals anytime, anywhere. More importantly, it does not require extra NTRIP signal subscription fees. Thus, you can enjoy more accurate navigation services to complete continuous and automated farming by using this base station.

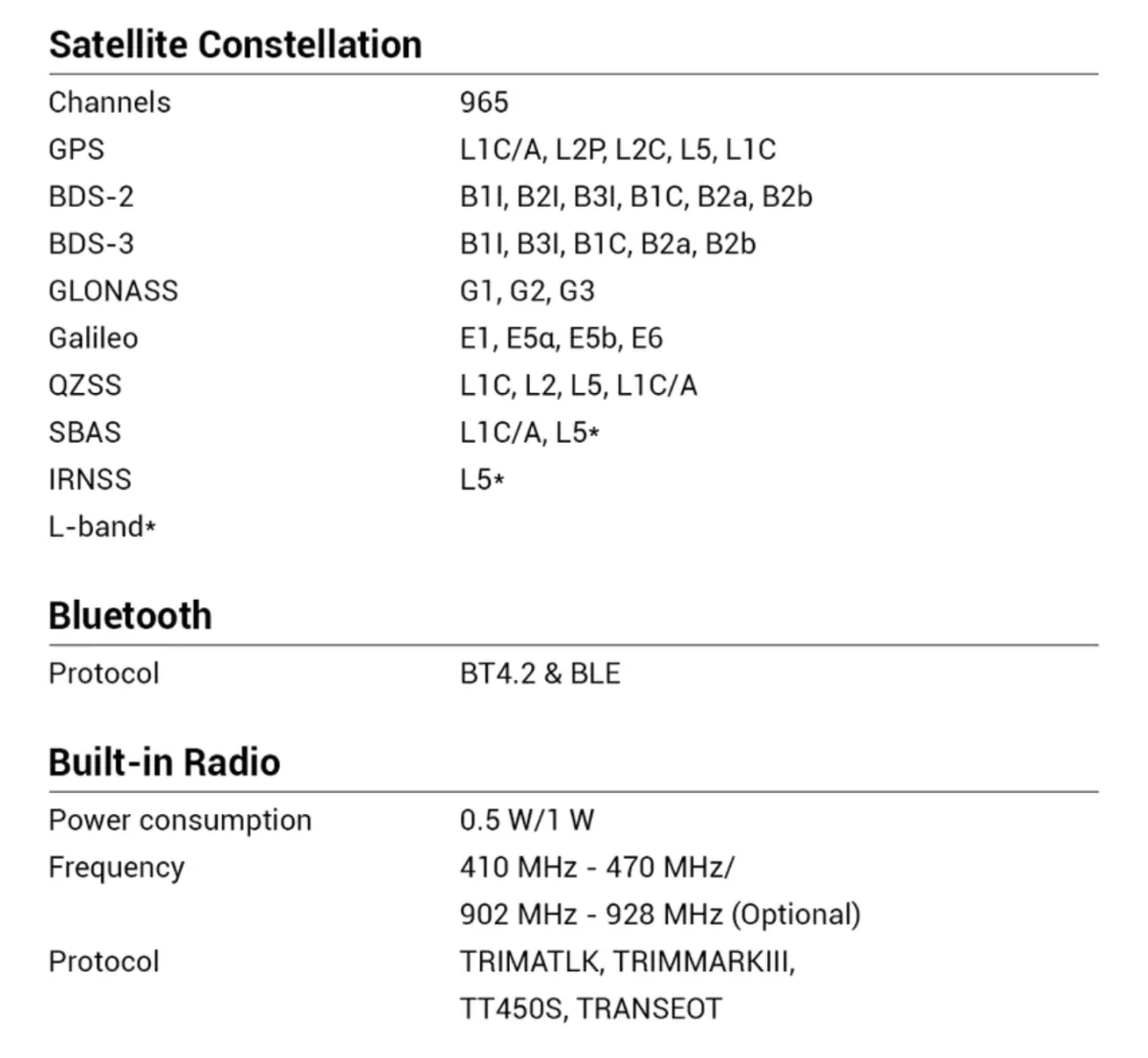

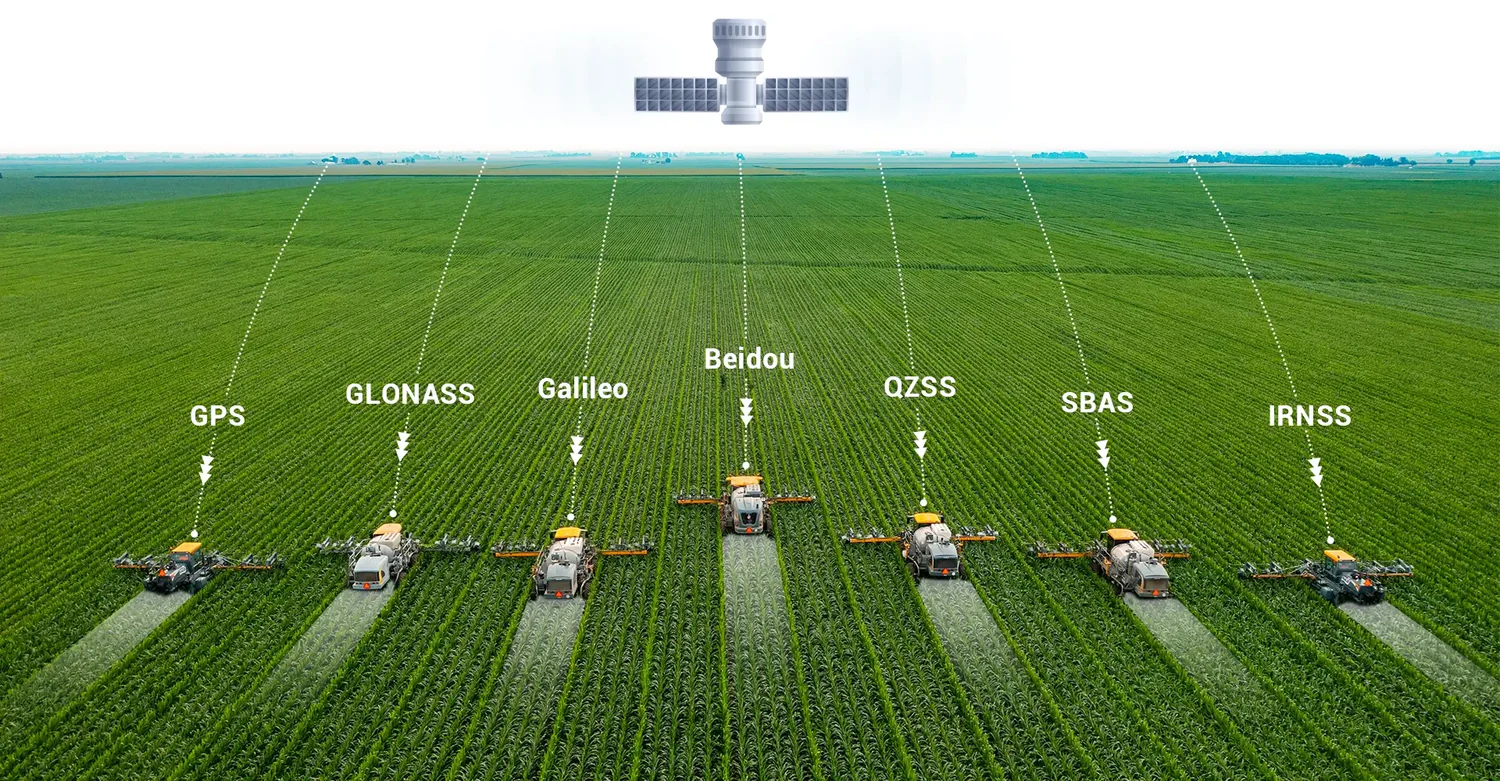

Wide Support for Global Constellation

Low cost and fast self-erecting RTK base station. Sveaverken V1 RTK Base Station supports 965 channels like GPS, GLONASS, Galileo, Beidou, QZSS, SBAS, IRNSS, and L-band. The satellite signal is more stable and covers a wider area. It can provide you with real-time differential data even in remote or more heavily blocked environments.

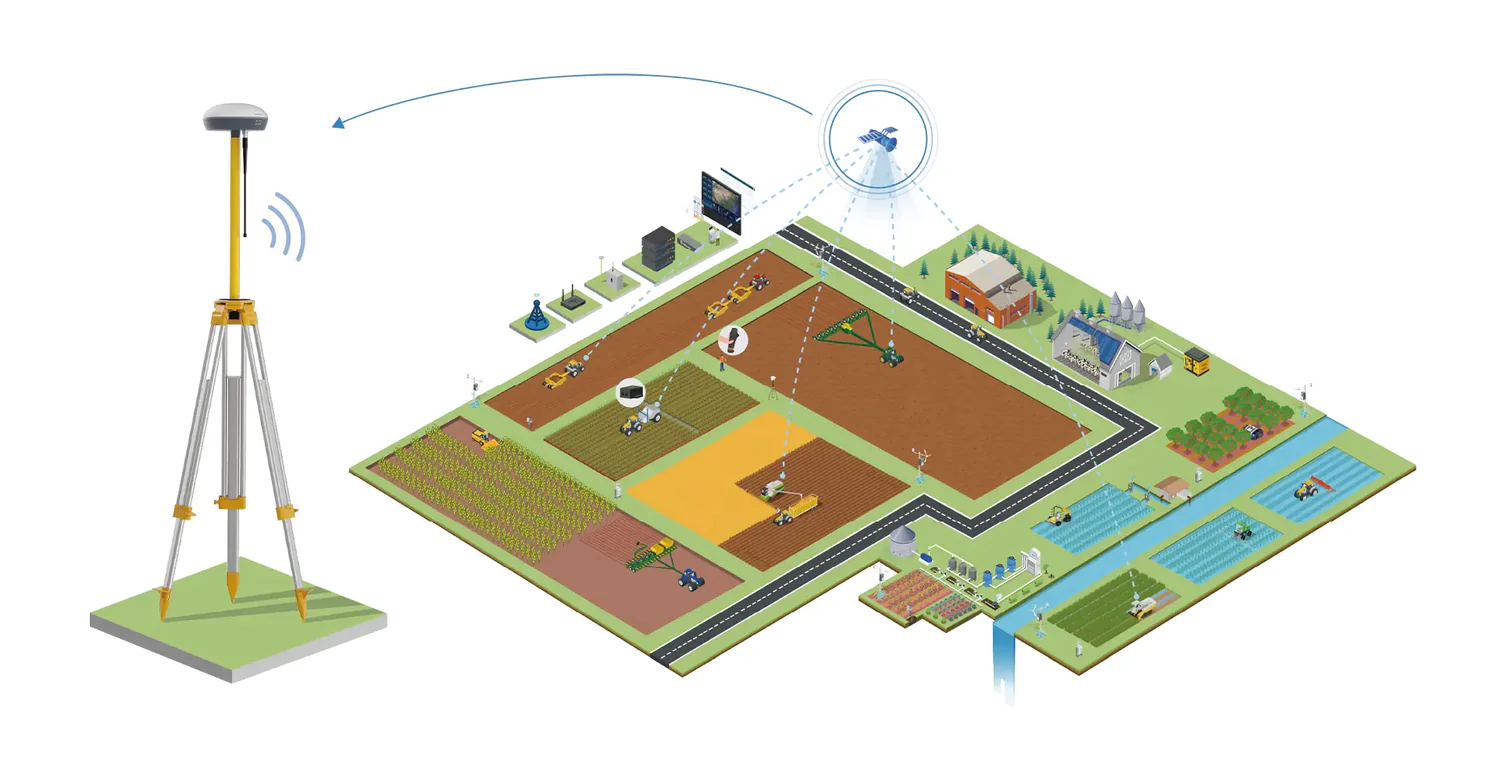

Best Provider of RTK Correction Data

Sveaverken V1 RTK Base Station is the best solution when NTRIP signal coverage is not available in your area. If the NTRIP network signal is unstable, it will also cause a decrease in navigation accuracy. V1 RTK Base Station can replace NTRIP to provide stable differential data services, making positioning and navigation more accurate. It is widely used in precision agriculture and engineering mapping (coming soon).Button

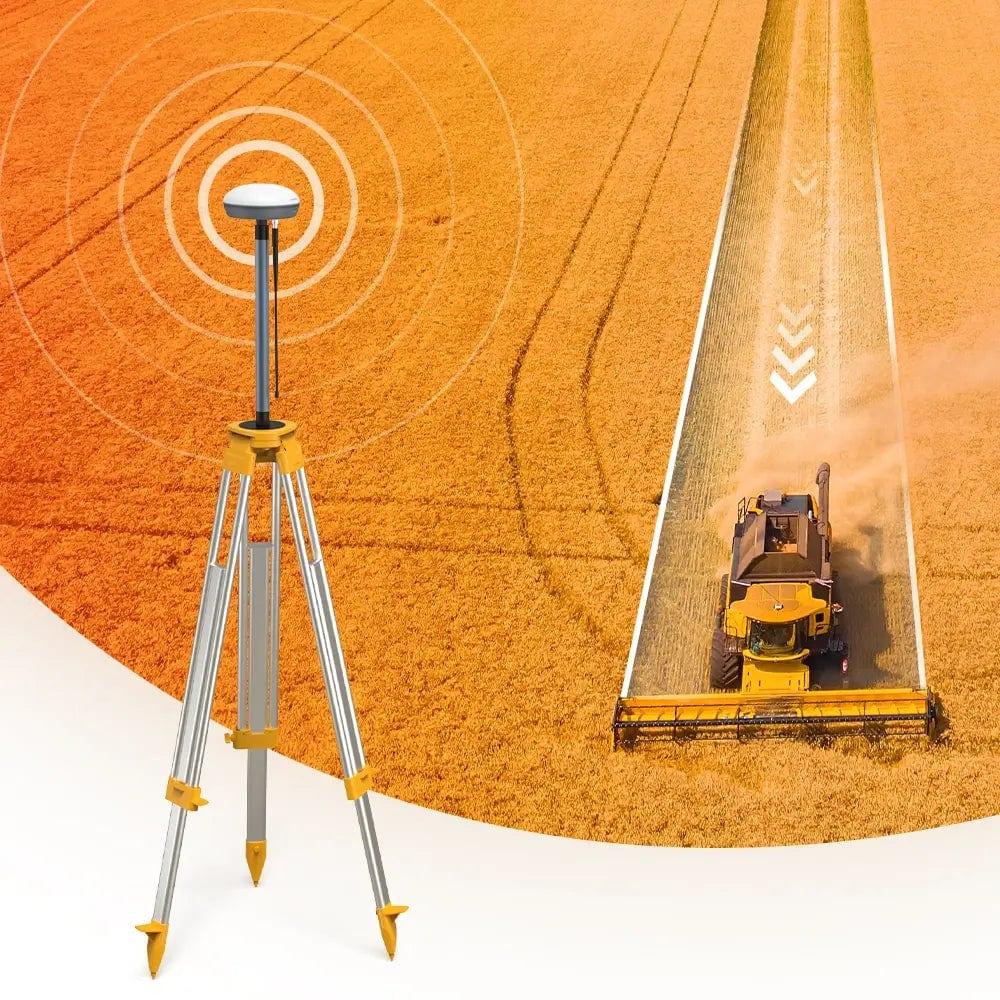

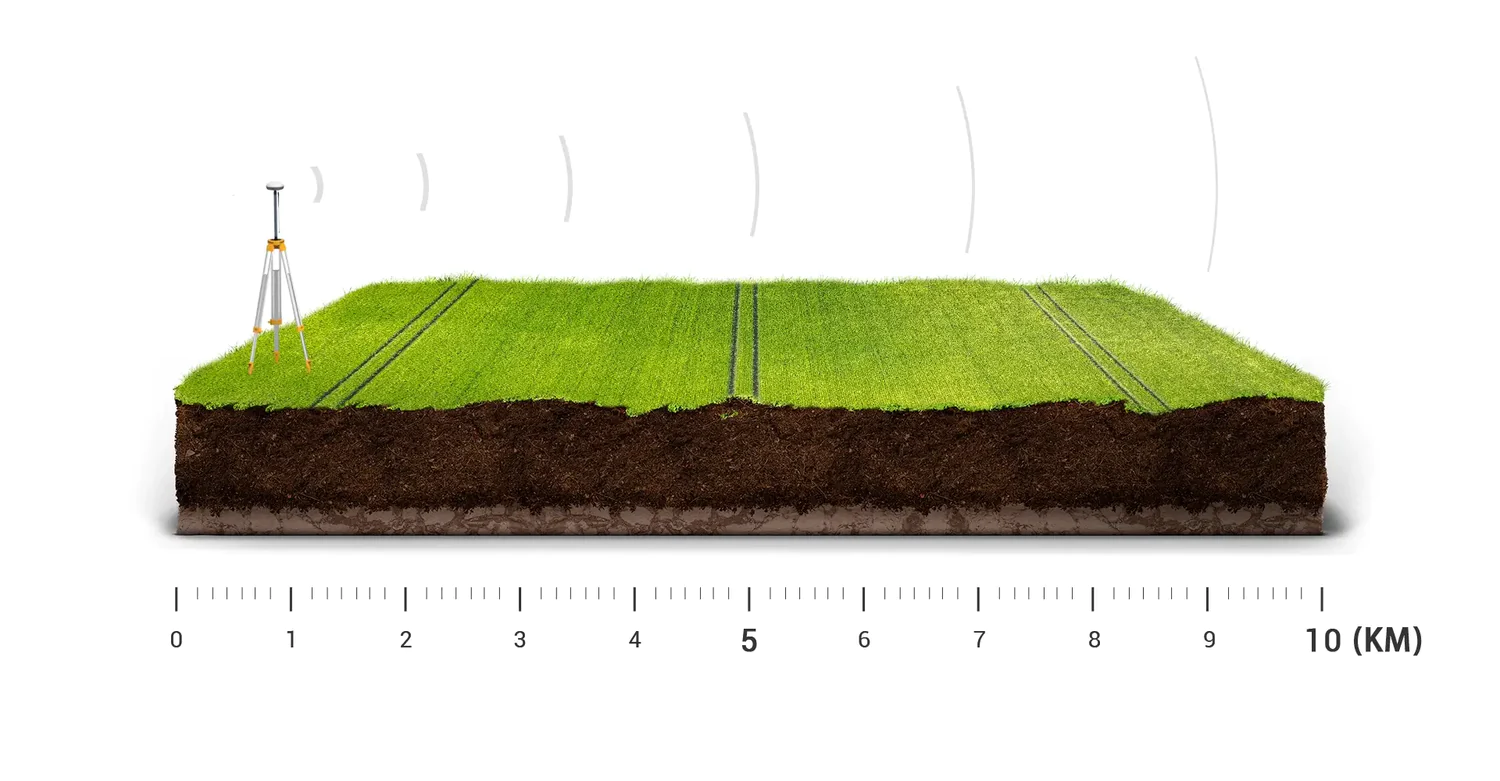

5-10km Long Signal Radiation Distance

The Sveaverken V1 Base Station can provide a working range of 5-10km for its long signal radiation distance. So it can meet the needs of large-scale land operations for your high precision daily farming. On the other hand, this base station can reduce operation deviation caused by the instable RTK signal from the NTRIP network.

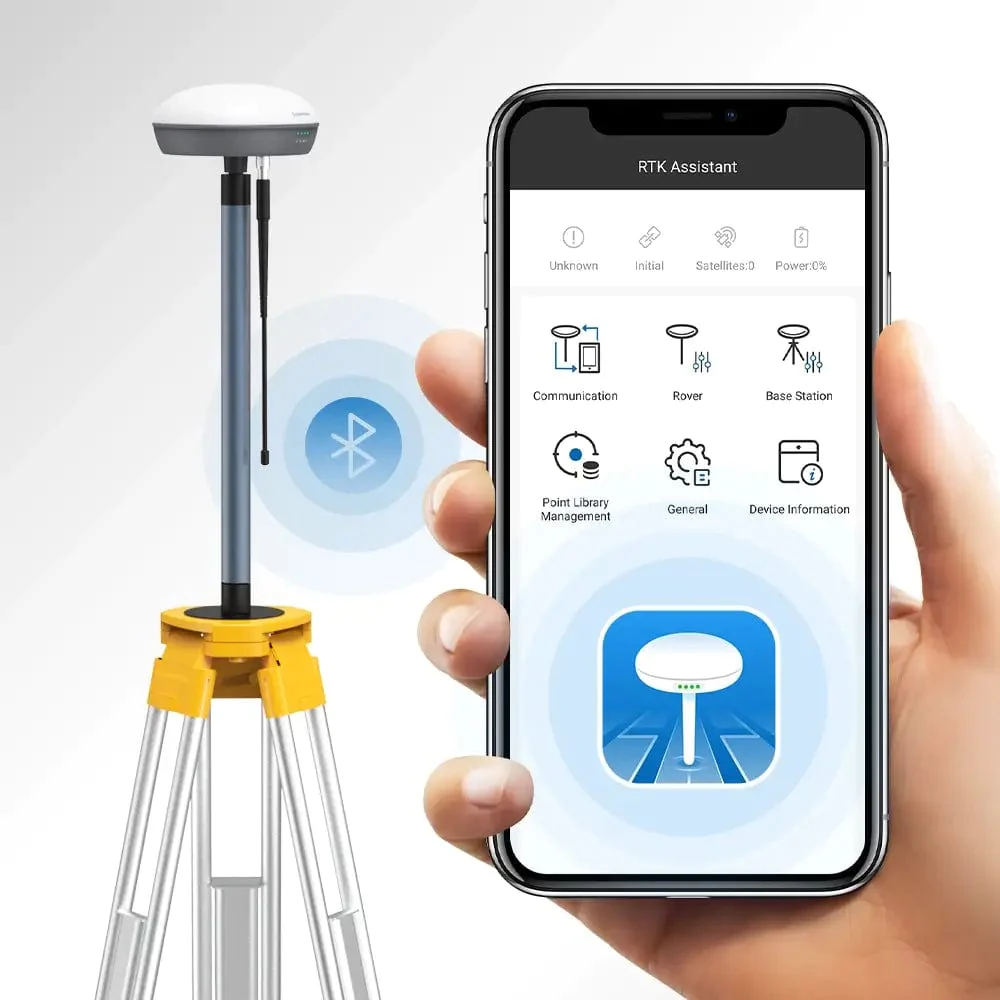

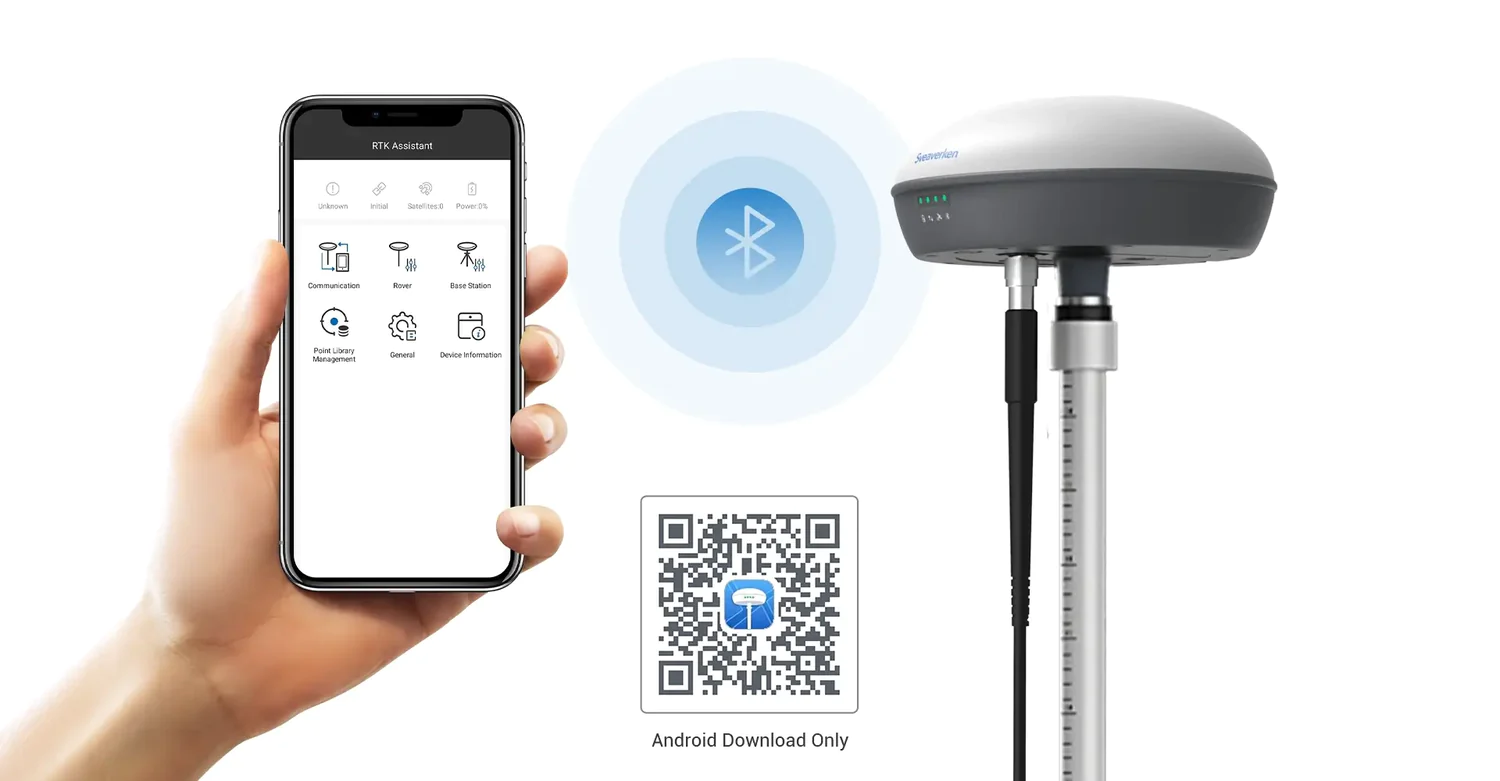

Support Smart APP Control

Via Bluetooth, the Sveaverken V1 RTK Base Station can
be connected to an *APP (RTK Assistant). You can set the base station
with inner radio or external radio. Then it can achieve smart functions
such as known coordinate base setting and user-defined radio frequency.

*APP：Download for Android devices only

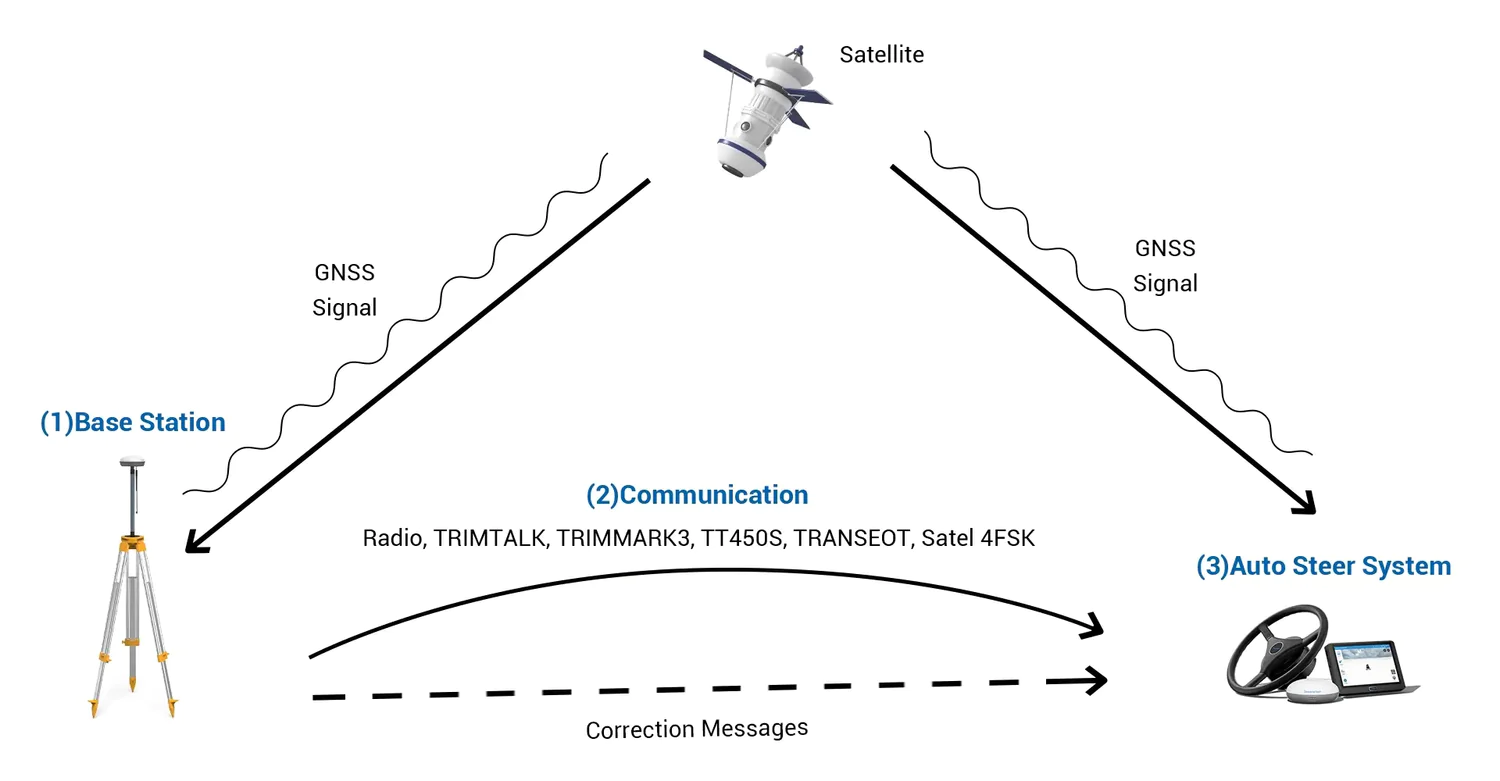

Muti-protocol Build-in Radio

Sveaverken V1 RTK Base Station can support 5 radio protocols, TRIMTALK, TRIMMARK3, TT450S, TRANSEOT, Satel 4FSK

If you are wondering Sveaverken V1 can be used for
other brands of auto steer systems, follow the steps below to submit
data to our technical experts for verification.

First, verify the radio protocols. Does your auto steer system support TRIMTALK, TRIMMARK3, TT450S, TRANSEOT, or Satel 4FSK?Second, verify the data format. Does your auto steer system support RTCM2.X or RTCM3.X?If you meet the above two conditions, it is very likely that your system adapts to the base station.

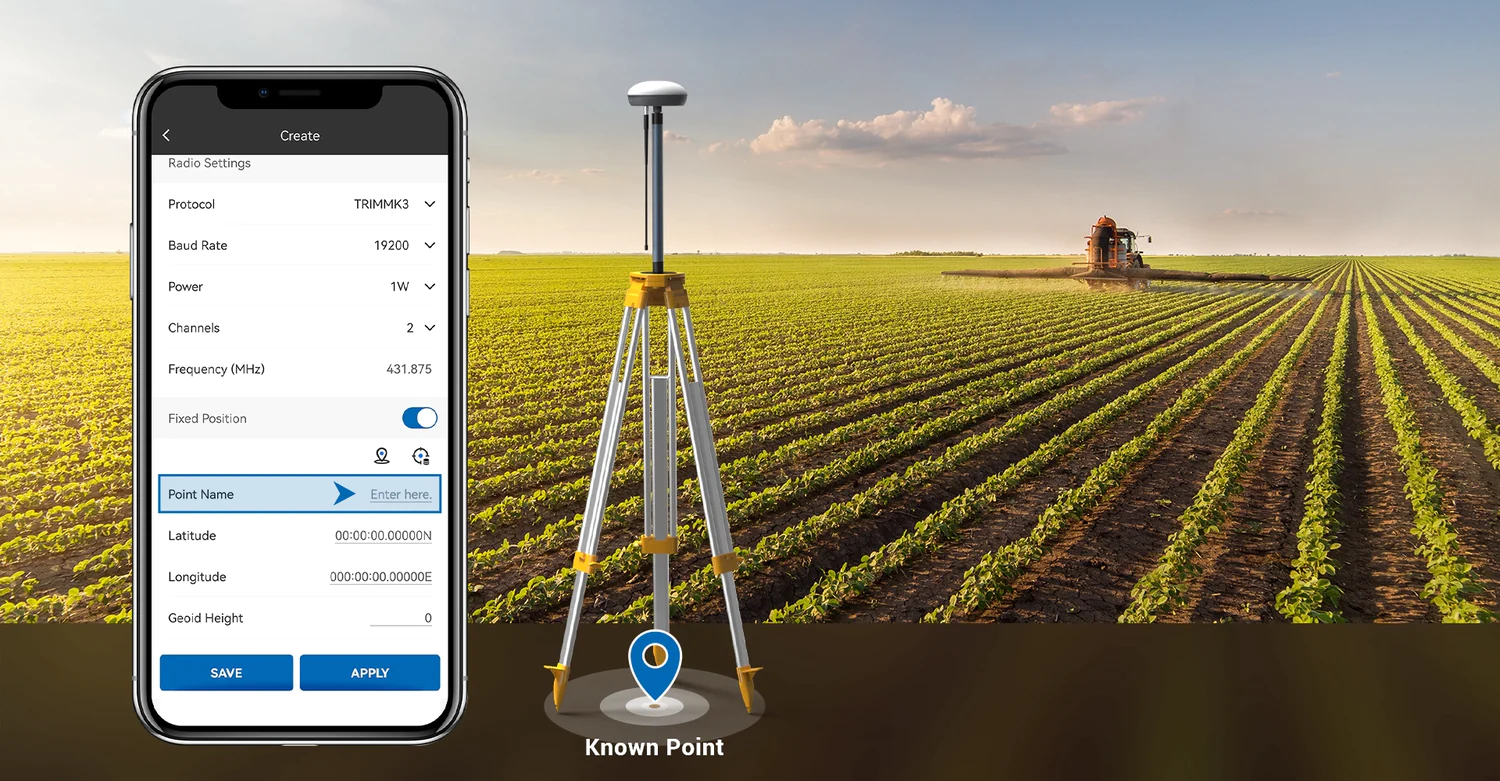

Setting Known Points Improves Working Efficiency

Turn on the switch button of "Fixed Position" to set
the coordinates of known points. After you've done your farm work, you
can leave the tripod in place overnight with just the GNSS receiver.

Then there is no need to carry out cumbersome station setting work on the
next day. You can just continue to place the V1 on the tripod, connect
to the APP and input the coordinates of known points. Then the same
operation route as yesterday can be guaranteed, and the operation
deviation caused by the different base station locations can be reduced.

Frequently Asked Questions

How does the controller connect to the V1 receiver via Bluetooth？Your Title Here

(1) Search for available Bluetooth devices again or clear the list of paired devices and connect again.

(2) Restart RTK Assistant app and connect again.

(3) Restart the Sveaverken V1 receiver and the controller/Android phone and connect again.

Sveaverken V1 can't track satellites, or the number of satellites is not normal, what should I do?

(1) Go to an open place, and restart the receiver.

(2) Restart the receiver, and wait 10 min to check the satellite communication again. Because it takes a while for the receiver to load the ephemeris data again after long distance transportation or long downtime.

(3) Check the V1 firmware version and upgrade the firmware to the latest version. Please ask our technician for help.

Sveaverken V1 RTK Base Station Setup Guidelines

(1) Place the base station at the center of the jobsite.

(2) Place the base station in a location that has a clear line of sight to the sky in all directions. Ensure that there are no large areas of obstructions in the overhead space with an angle larger than 5°-15° to the receiver antenna.

(3) Set up the base station at least 200 m away from overhead power lines or other sources of electromagnetic waves to avoid interference with GNSS receiver operation.(4) Do not set up the base station in a location having strong reflection of electromagnetic waves, to reduce multipath from the surrounding area such as a large expanse of water.

(5) Place the base station as high as practical to facilitate transmission of radio signals.

(6) Set up the base station in an easily accessible area.
