Our system is compatible with 90% of all tractor, transplanter, sprayer, and harvester brands and models on the market. Whether your equipment is a front-drive, or rear-drive type, you can first check yourself in the F100 compatibility table. If you don't find the make and model of your equipment on the table, you can contact us via [email protected]. Leave your equipment brand and model and we will have our technicians do the compatibility test.

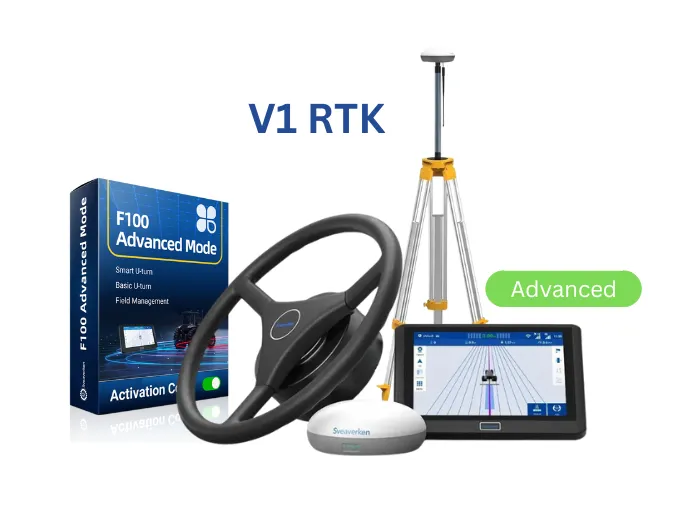

It contains both hardware and software.The hardware has 4 main components: a control terminal, electric steering wheel, GNSS receiver, and angle sensor. Plus some accessories and wires. You can refer to the manual.For the software part, we will send you the software activation code by email after you finish the payment for F100 with advanced mode.

It is impossible to turn the U-turn on/off in a task, you have to exit the task and enter advanced mode to do so; However, it is possible to change the driving direction of the U-turn or manual/automatic during the task.

Step 1: Purchase the F100 Advanced Mode to get the activation code.Step 2: Open the system > Tap Settings > System Settings > Mode Selection > ActivateStep 3: Enter the activation code in the pop-up dialog, and tap OK.Step 4: After the activation code is verified, an Information Confirmation dialog pops up. If the code is correct, click confirm to activate.Step 5: After the mode is activated, the user can view its status and the advanced mode interface, and the functions including field task, U-turn, and so on can be used.

When you tap the record button on the screen, the system will start counting acres; the historical data will keep information on each operation (time, which field, which baseline, operation length, operation track).

We will provide screws. You can fix it by screwing it or with 3M adhesive stickers.

The waterproof rating of the GNSS receiver is IP66, and the steering wheel and control terminal are both IP65. Therefore, the 2.5cm high precision system supports your operation at night, in rain and snow.

You can click on the record button at the bottom right of the screen.

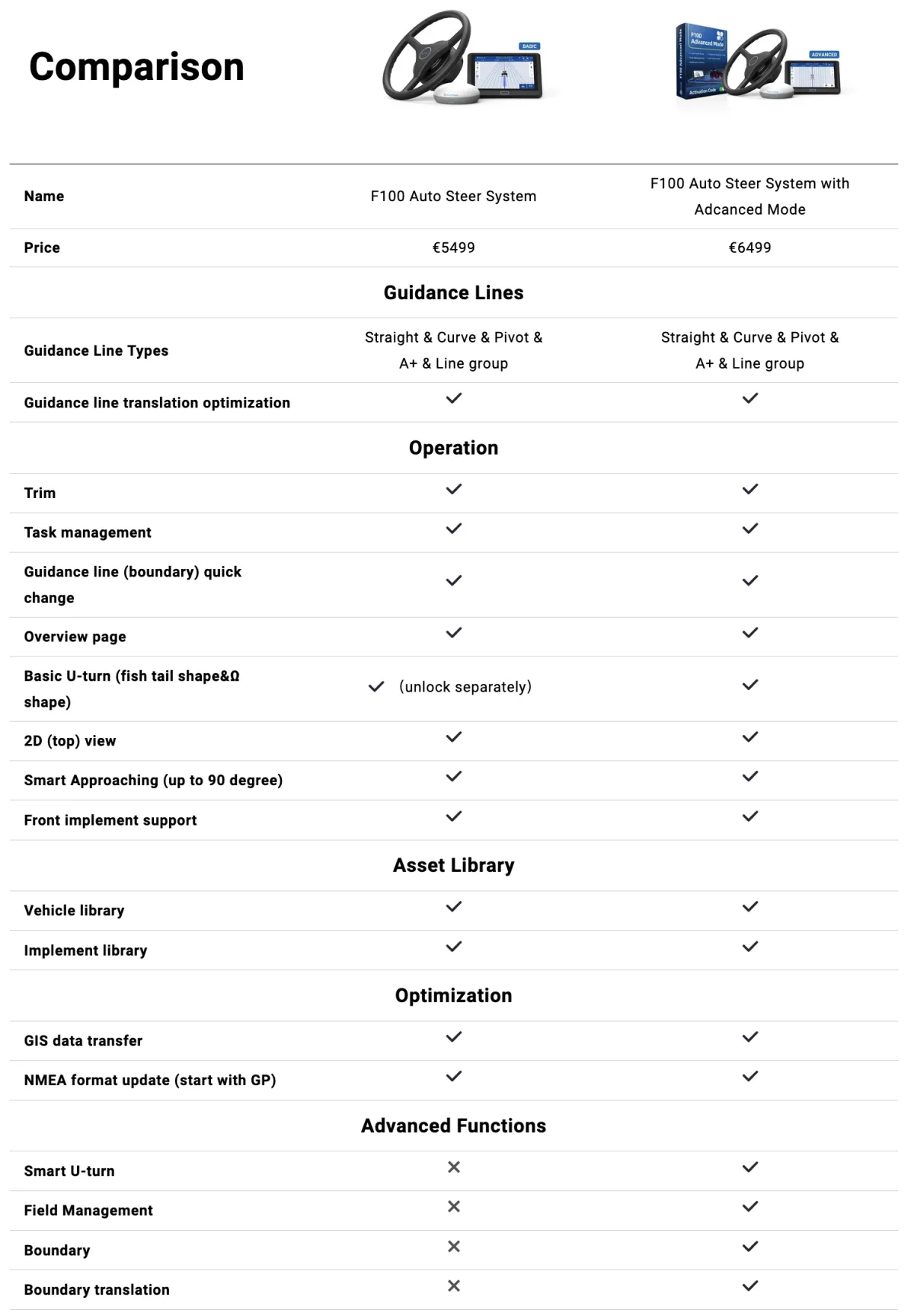

The difference between the F100 Auto Steer System and F100 with Advanced Mode is mainly in the functions.Both of them can achieve 2.5cm high precision navigation and the setting of the guidance line (straight line and curve line).Therefore, the F100 Auto Steer System can meet farmers' daily needs for farming.When you have higher demands for the functions, such as U-turn auto drive and filed management, then you can purchase the F100 Advanced Mode (software upgrade) or the package of F100 Auto Steer System with Advanced Mode directly.

No, the system operates with an accuracy of about 30 cm when no RTK base station or NTRIP network protocol is used.

It depends on your needs. RTK is recommended if you need high-precision operations.If not, you can choose the SBAS function (coming soon). Services including WAAS, EGNOS, MSAS, and SDCM are provided for free.
