F100G Tractor handling system

Easy entry into precision agriculture.

Precise driving without hard work

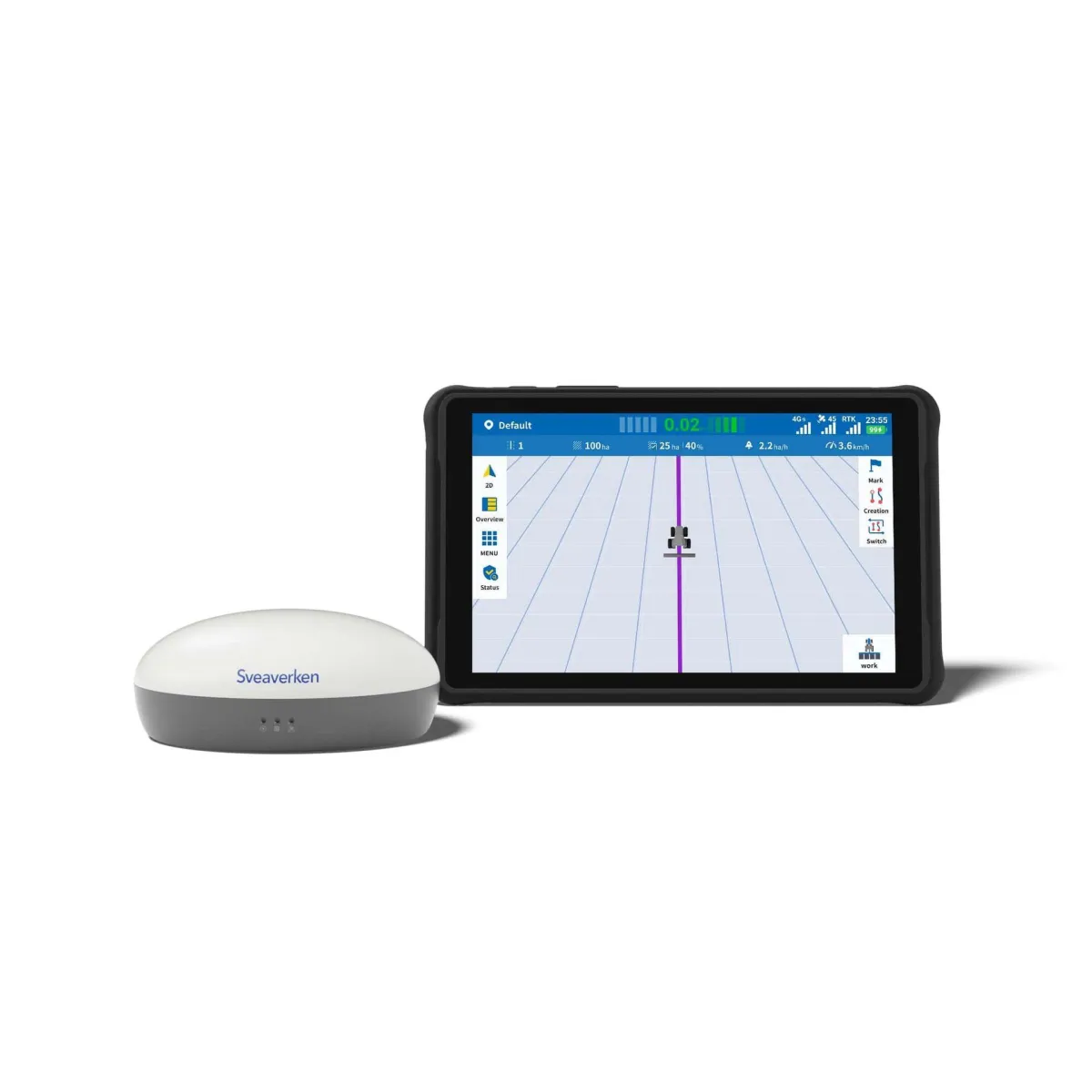

The Sveaverken F100G makes precision farming easier and more affordable. It keeps agricultural vehicles on course, even in tough terrain, reducing driver fatigue and improving efficiency.

By eliminating overlaps and gaps in cultivation, planting, spraying, and harvesting, it helps operators of all skill levels work accurately and get more from every field.

  • Precise auto-steering

  • Reduced driver fatigue

  • Maximised field use

Tractor handling system

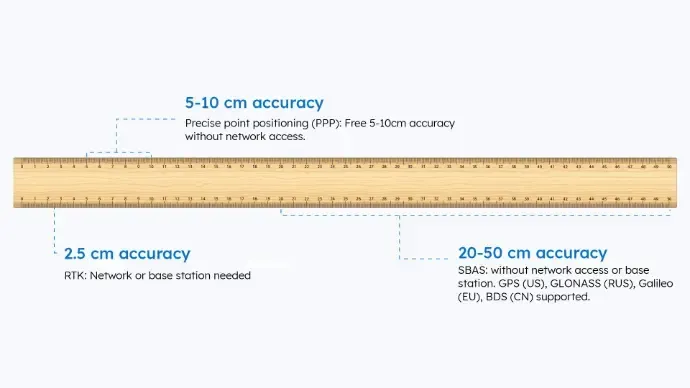

Flexible GNSS Correction Solutions

With an advanced correction service, the F100G delivers evenly spaced rows during field work for precise application, crop maximization and overlays.

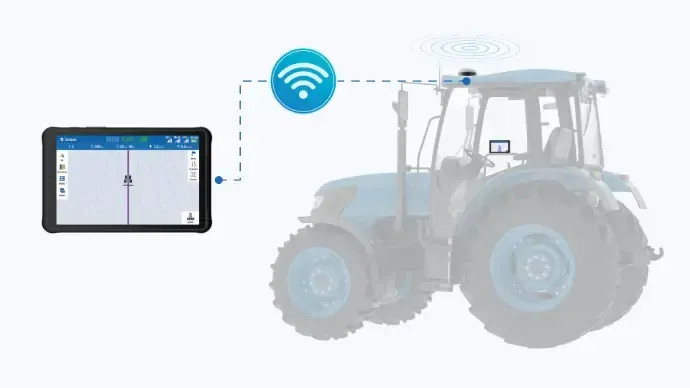

No Wires

The F100G guide terminal communicates with the GNSS receiver via Wi-Fi, which means one less wire to connect the tractor to the cab from the roof.

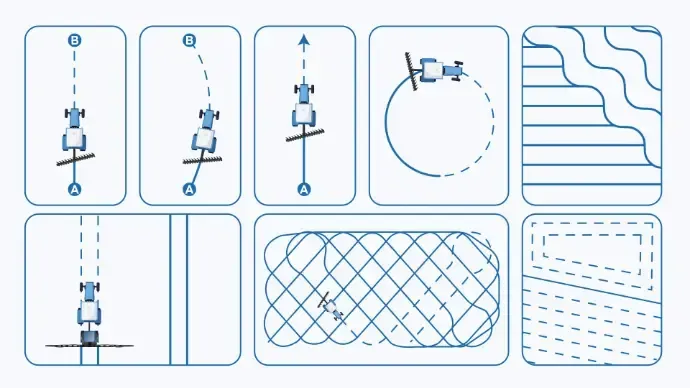

Easy planning of the route

Start by selecting the driving line that best fits the task and shape of the field, ensuring that the vehicle stays on the track from start to finish.

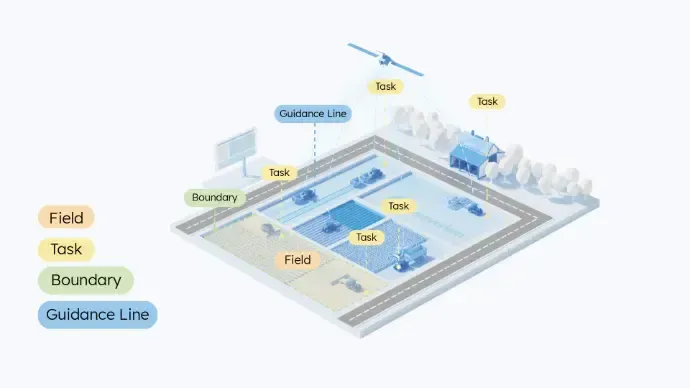

Learn more about your field

Create profiles for each field by recording boundaries, lead lines, and completed tasks. Use historical data to plan future work, track progress, and make informed decisions about planting, spraying, and harvesting.

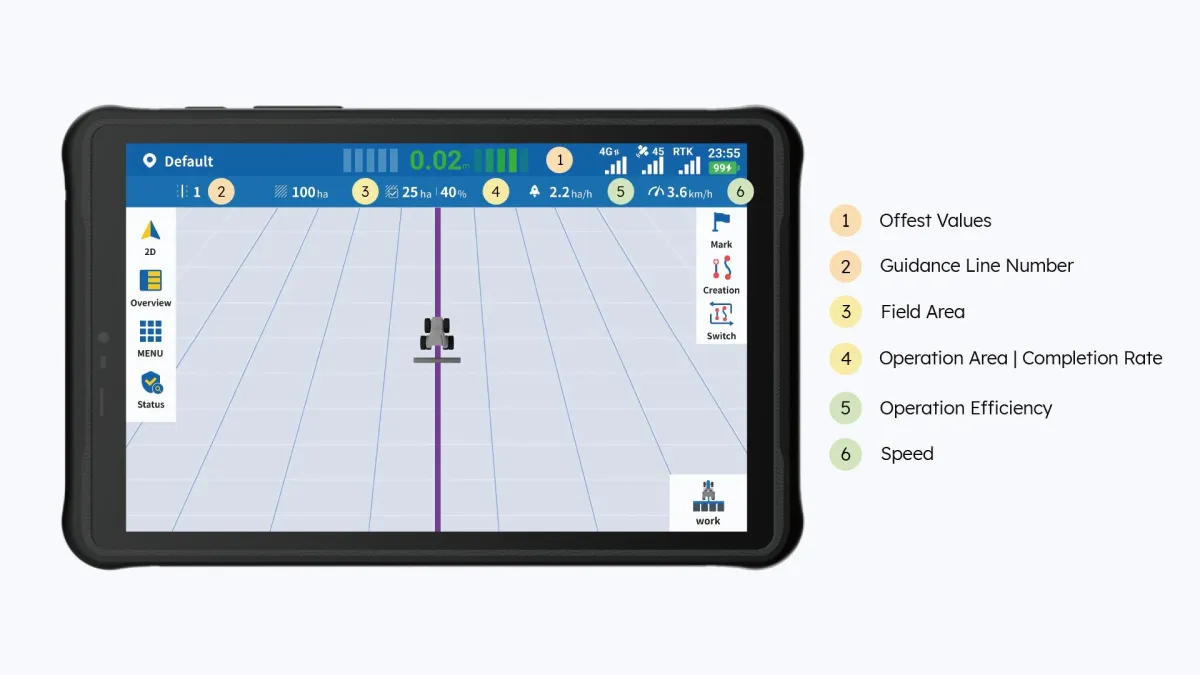

Monitoring in real time

The F100G monitors the alignment of the vehicle, detecting deviations from the pre-set path and signaling them on the terminal display. With real-time feedback, operators can quickly make adjustments to keep the vehicle at the right course.

The specifications and specifications

Control clamp

Size: 211.5 mm x 136,0 mm x 16.3 mm

Screen of Appeal: 10-inch, IPS 1280x800

Working temperature: -20 to 55℃

Storage Temperature: -40 to 70℃

IP65: Water resistant and weatherproof

The GNSS receiver

Source of correction: GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5, SBASSize: 211.5 mm x 136,0 mm x 16.3 mm

Working voltage: 9-36V

Size: 162 x 78 mm

Working temperature; -20-70℃

Storage Temperature: -40-85℃

IP 67: Waterproof and complete protection against dust over extended time
